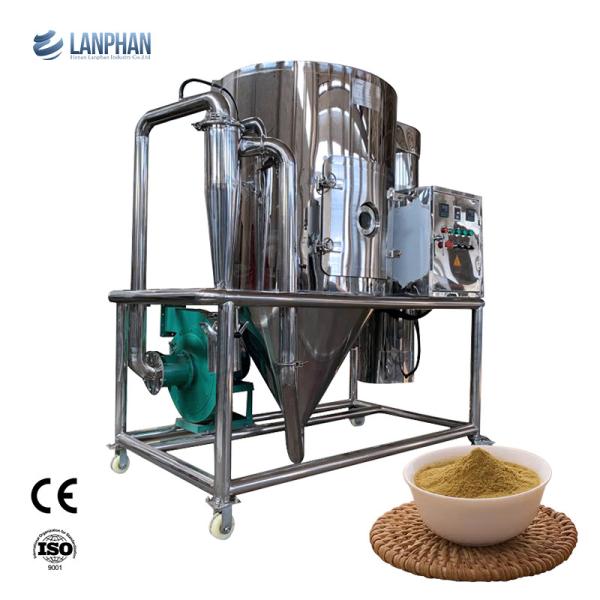

Chemical Equipment Pilot Industrial Spray Dryer 10L
Product Parameter
| Product Name | Large Spray Dryer |
| Inlet air temperature control (℃) | 180～250 |
| Air outlet temperature control (℃) | 80～90 |
| Centrifugal nozzle speed | 22000rpm |
| Water evaporation (ml/h) | 10kg/H |
| Maximum feeding capacity (ml/h) | 10000 |
| Minimum feeding amount (ml/h) | 200 |
| Mode of feed | Peristaltic pump regulation |
| Temperature control accuracy (℃) | ±1 |
| Mean drying time (s) | 1～1.5 |
| Total Power | 28kw/380v |
| Stainless steel drying tower size (mm) | Diameter1400 height 2700 |
| Product Dimension(mm) | 2500x1500x2600 |
| Package Dimension(mm) | 2600x1600x2800 |
Product Application:
Various fields where the production of a free powder sample is required.
LPG-10L has successfully processed samples in the following areas: Beverage, Flavours and colourings, Milk and egg products, Plant and vegetable extracts, Pharmaceuticals, Synthetics Heat sensitive materials, Plastics polymers and resins, Perfumes, Blood, Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents, Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth and tooth amalgam and many others.
Product cleaning:
- Dry cleaning - use brushes, brooms, vacuum cleaners cleaning.
- Wet cleaning - with 60-80 ℃ hot water cleaning.
- Chemical cleaning - clean with alkali, acid and all kinds of detergent.
- Alkali wash - with the sodium hydroxide (NaOH) with a 0.5 1% concentration of solution, heating to 60-80 ℃ to clean, and then clean with clear water.
- Acid wash: with nitric acid (HNO3) at 1-2% concentration of solution, heating temperature does not exceed 65 ℃ for washing, and then clean with clear water.
Note: when using wet cleaning and chemical cleaning, equipment and components shall be installed, through high temperature disinfection, 15 to 30 minutes, when the equipment cleaning, washing cannot use chlorine and compounds.
The stainless steel filament, after washing with the alkaline cleaning method, still should be uniform to laying within the framework of air filter, and spray to lightweight spindle oil or vacuum pump oil.
