Lab Rotary Evaporator High Borosilicate Glass 5L
Product Parameter
| Product Name | Rotary Evaporator |
| Product Model | RE-501 |
| Glass Material | GG-17 |
| Frame Material | Stainless Steel |
| Rotary Flask Volume | 5L |
| Collecting Flask Volume | 3L |
| Vacuum Degree | 0.098Mpa |
| Rotary Power | 40W |
| Rotary Speed | 0-120rpm |
| Heating Power | 2kw |
Product Description

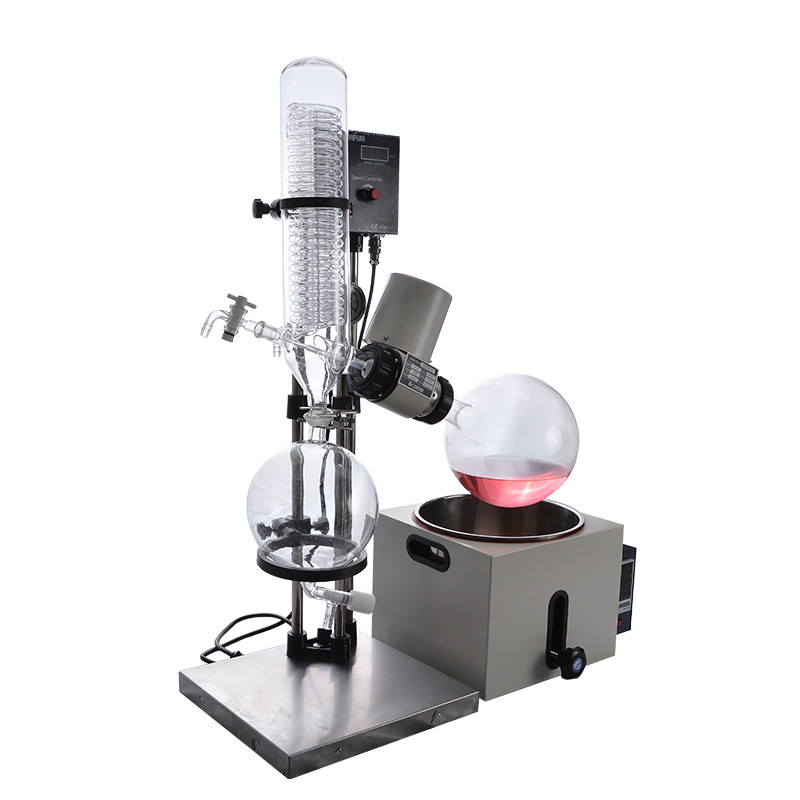

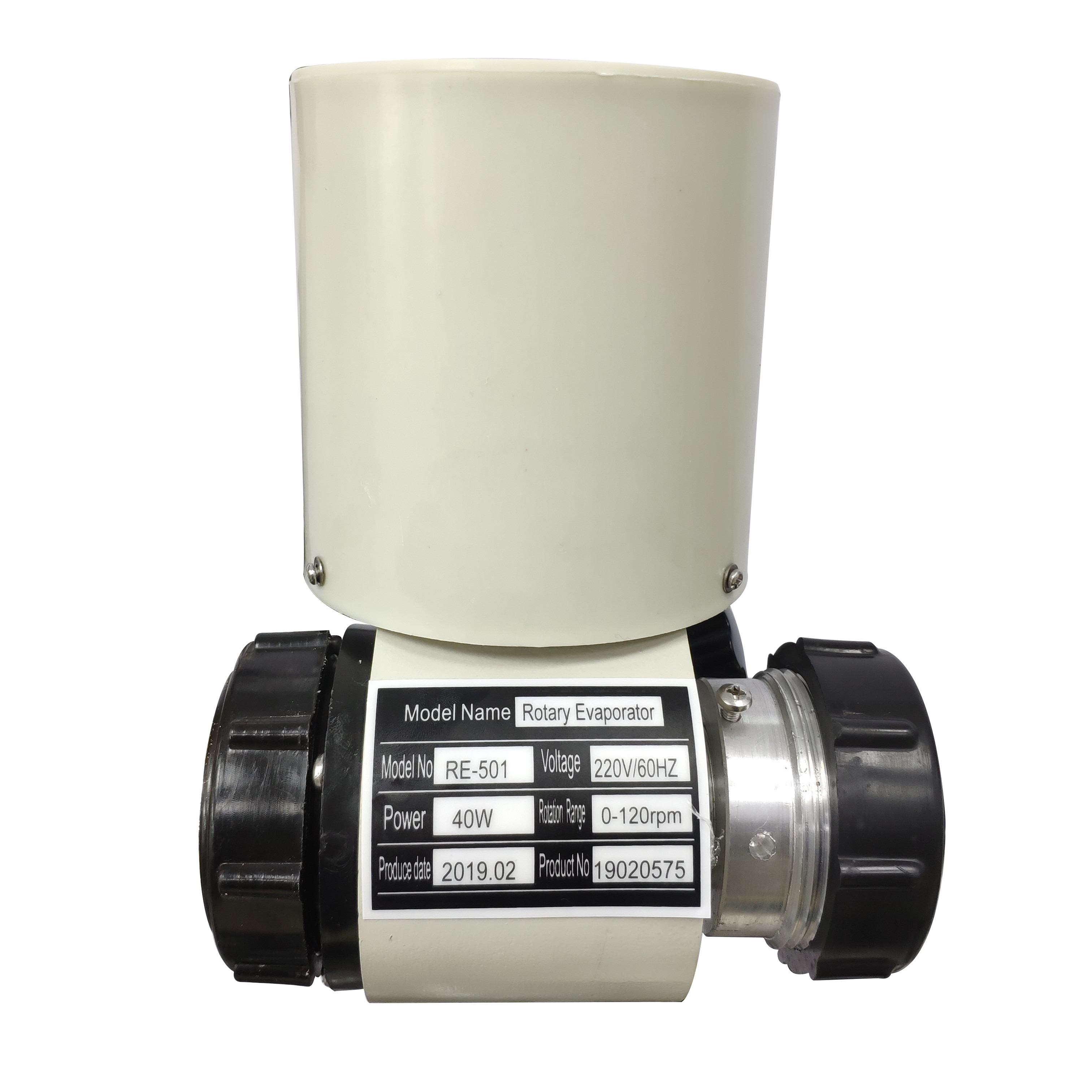

The RE-501 5L Rotary Evaporator’s maximum capacity is 5000ml, the rotating speed is 5-120r.p.m, and the motor power is 40W. The RE-501 5L Rotary Evaporator is the basis of Lanphan’s existing rotary evaporators. It has a manual lifting handle, a self-developed machinery and a well designed glass component. The location of the glass component can be accurately set. The digital display of the rotating speed and the heating kettle’s temperature can help optimize and control all distillation processes. The new type of fixing mechanism greatly simplifies the operation process of changing the evaporating flask.
The rotary evaporator, also known as rotavap or rotovap, is a common lab instrument used in chemical laboratory. It’s mainly adopted to distill a large amount of volatile solvents continuously under the negative pressure. It is capable of separating and purifying reaction products especially for the concentration of liquid extract and distillation of receiving fluid during the chromatographic separation. As the evaporator is vacuumized, the boiling point of the solvent to be distilled decreases. In general, the component distilled from the sample is the target component in the chemical research, such as extracting some natural component from organic synthesis sample. Generally, the rotary evaporator is used to separate components with low boiling points, such as ethane and ehtyl acetate, which are liquids at room temperature and normal pressure. Furthermore, some component in the sample can be removed through standard operation.
Product Parts
There is a PTFE jacket among the glass of standard mouth, preventing the glass grinding mouth from being damaged. It’s convenient to install and dismantle, and easy to clean.

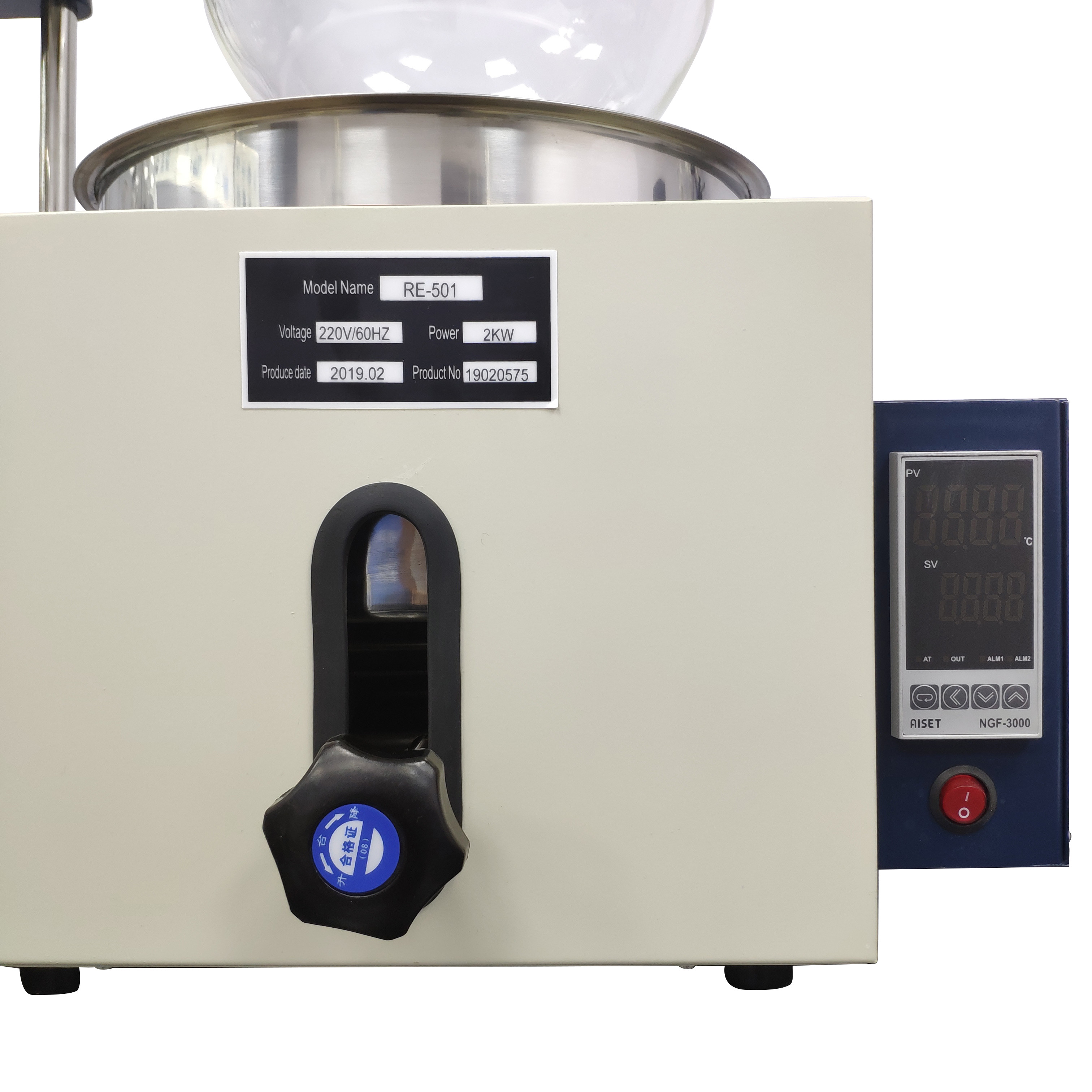

Heating kettle’s operation button possesses the function of temperature locking, which is convenient to easily control experimental temperature. The dry burning prevention function and safety temperature loop are possessed as well.
The digital display of both rotating speed and heating temperature makes it easy to observe every parameter. The main engine can be lifted and lowered manually.
High efficient vertical condensing glass assembly is equipped, which makes the condensation area touch 1500cm², and the recovery rate approach 100% with a fast condensation speed of the solvent.
|
|
Lab Rotary Evaporator High Borosilicate Glass 5L Images
|
